The reinforced blanking plug for Scubatec modular valves, featuring an integrated high-pressure port for hoses or pressure gauges.
The Scubatec Side Plug, available on DIR-STORE, is a fundamental technical component for managing and sealing single modular valves (LONG series or expandable). This special plug not only seals the secondary port of the valve but also integrates a high-pressure (HP) port with a standard 7/16" thread on its head. This feature allows for the direct connection of a submersible pressure gauge, an HP hose, or a computer transmitter, optimizing hose routing behind the diver's back.
Key Strengths:
-

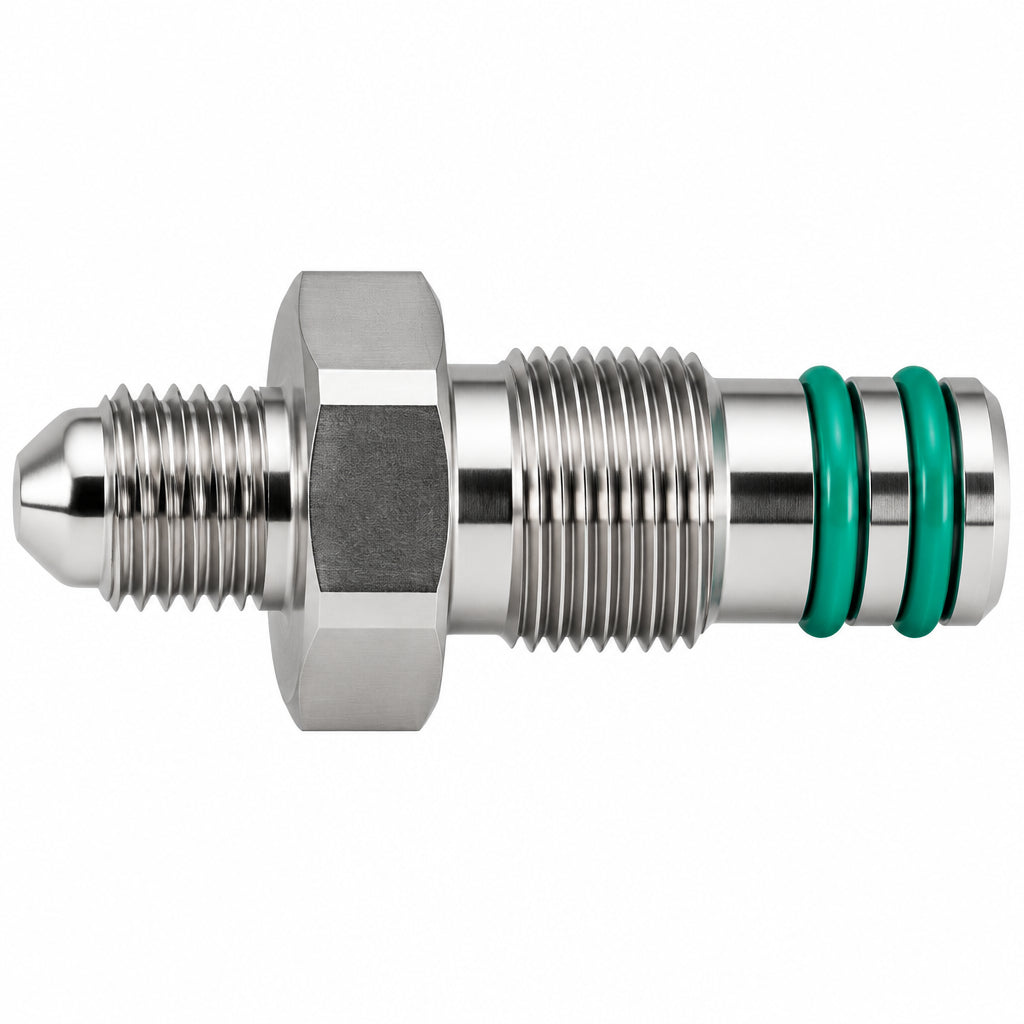

Dual Viton O-Rings as Standard: As clearly visible in the image, the insertion pin is equipped with two radial O-rings made of green Viton compound (Oxygen Clean). This double-seal system ensures absolute safety against micro gas leaks, perfectly tolerating twists and use with Nitrox or pure Oxygen mixtures.
-
Machined from Solid Naval Brass: Entirely CNC machined from high-strength marine brass bars and protected by heavy polished chrome plating. It is designed to withstand maximum operating pressures (up to 232/300 bar) without deformation.
-
Secure Tightening Geometry: Features a central hexagonal profile that allows for stable, precise, and secure tightening using a common wrench during assembly or maintenance.
Available Configurations:
To ensure proper threading and orientation of the thread on the valve body, the plug must be chosen based on the installation side:
- Right Version (DX)
- Left Version (SX)
Technical Specifications at a Glance:
-
Manufacturer: Scubatec (100% Made in Italy)
-
Valve Connection Thread: Specific Scubatec Modular Pitch
-
Service Outlet: 7/16" HP (High Pressure)
-
Seal Compound: Standard VITON (Air / Nitrox / Oxygen Compatible)
-
Recommended Use: Sealing single modular valves with the need for an additional HP outlet.
