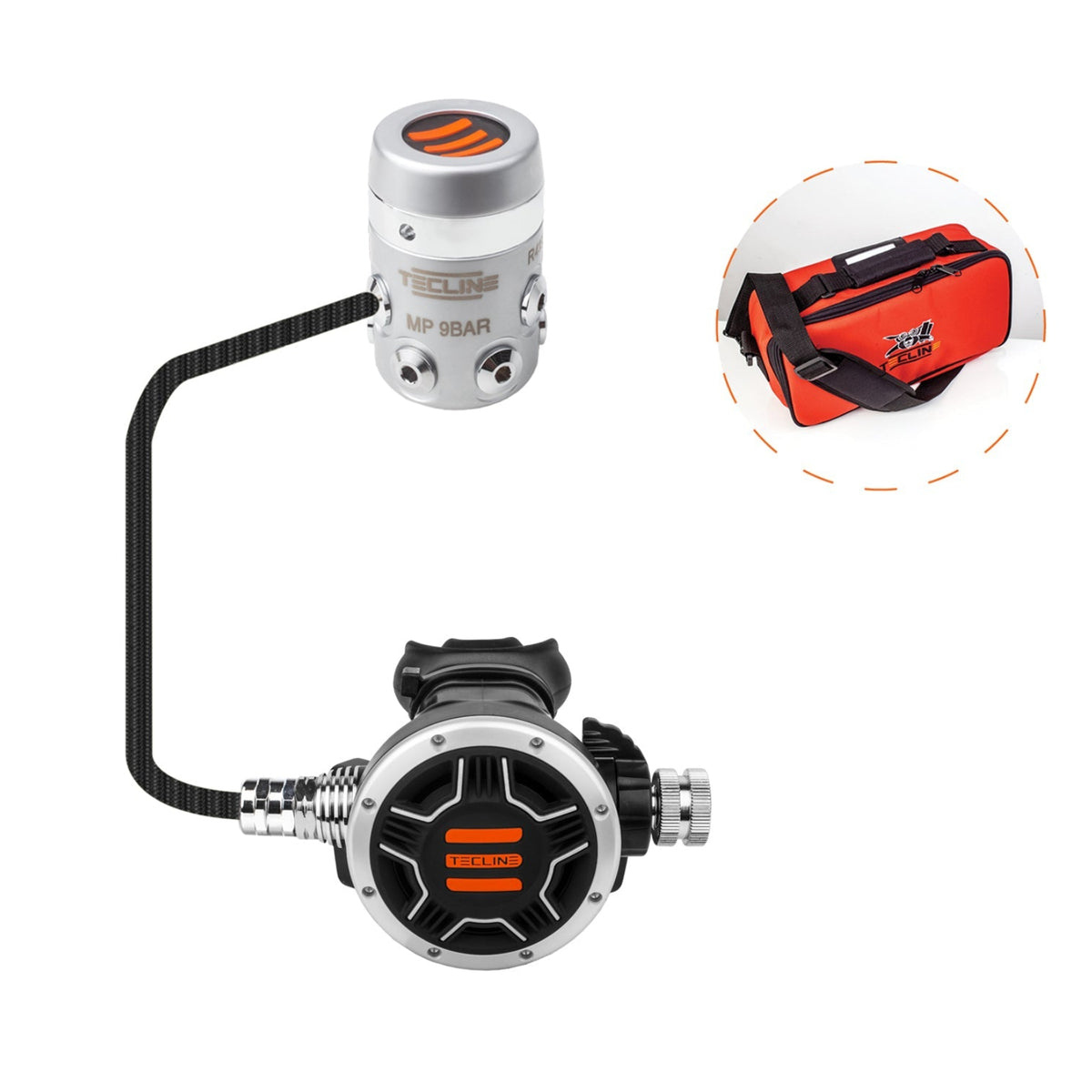

Regulator Set – 1st Stage R4 + 2nd Stage TEC1

High-performance balanced single regulator set with R4 TEC dry chamber diaphragm 1st stage and TEC1 2nd stage, supplied with a choice of hose, regulator bag, and EN250A certification for cold water.

The Tecline R4 TEC1 regulator set, available on DIR-STORE, is a lightweight, versatile, and highly reliable system designed to meet the demands of cold water diving. Combining the compactness and perfect insulation of the R4 TEC diaphragm first stage with the flexible adjustment of the pneumatically balanced TEC1 second stage, this set rigorously exceeds the requirements of the European standard EN250A.

An excellent configuration for stage and decompression cylinder regulators as well as advanced single or twin cylinder kits, it comes complete with a red Tecline bag and total freedom in choosing the type and length of the hose.

Key Features:

• Balanced Diaphragm First Stage: Constant and smooth delivery independent of depth and cylinder pressure.
• Antifreeze Insulation (Dry Chamber): Sealed dry chamber with integrated cooling kit for maximum safety in icy waters (<10°C).
• Pneumatically Balanced Second Stage: Reduced and customizable breathing effort directly during the dive.
• Dual Dynamic Adjustment: Micrometric knob for breathing resistance and lever for Venturi flow control.
• Integrated Heat Exchanger: Dissipates the cold generated by gas expansion, preventing blockages or freezing of the second stage.
• Robust and Lightweight Structure: Technical polymer body with aluminum outer ring and a low weight of only 250 g.
• Hose Customization: Choice between high-density rubber and Proflex Tecline braided hose with custom length.

Technical Specifications First Stage (R4 TEC):

• Brand: Tecline
• Type: Balanced diaphragm first stage
• Thermal System: Sealed dry chamber + integrated cooling kit for cold water
• Ports: 4x LP (3/8" UNF), 2x HP (7/16" UNF)
• Operating Pressure: Up to 300 bar
• Material: Chrome-plated marine bronze
• Certification: EN250A (cold water)
• Configuration Compatibility: Decompression / Stage (Perfect), Single Cylinder (Good), Twin Cylinder (Excellent), Sidemount (Not recommended)

Technical Specifications Second Stage (TEC1 Black):

• Brand: Tecline
• Type: Pneumatically balanced second stage
• Adjustments: Knob for breathing effort + Venturi effect lever
• Antifreeze Protection: Additional heat exchanger for cold water
• Construction: Aluminum outer ring, heat-resistant body
• Mouthpiece: Anatomical/ergonomic for high comfort
• Weight: 250 g
• Certification: EN250A

Set Contents and Configuration:

• 1x Tecline R4 TEC First Stage (Dry Chamber / Antifreeze)
• 1x Tecline TEC1 Second Stage (Black Cover)
• 1x LP hose of choice (Standard Rubber or Proflex Braided) in the desired length
• 1x Tecline Regulator Bag (Red Color)

DIR-STORE Tip: The R4 TEC1 set is the perfect balance for those seeking complete control over the second stage breathing adjustments combined with the compactness and frost resistance of the R4 TEC first stage. Configure the hose type and size using the options menu.
