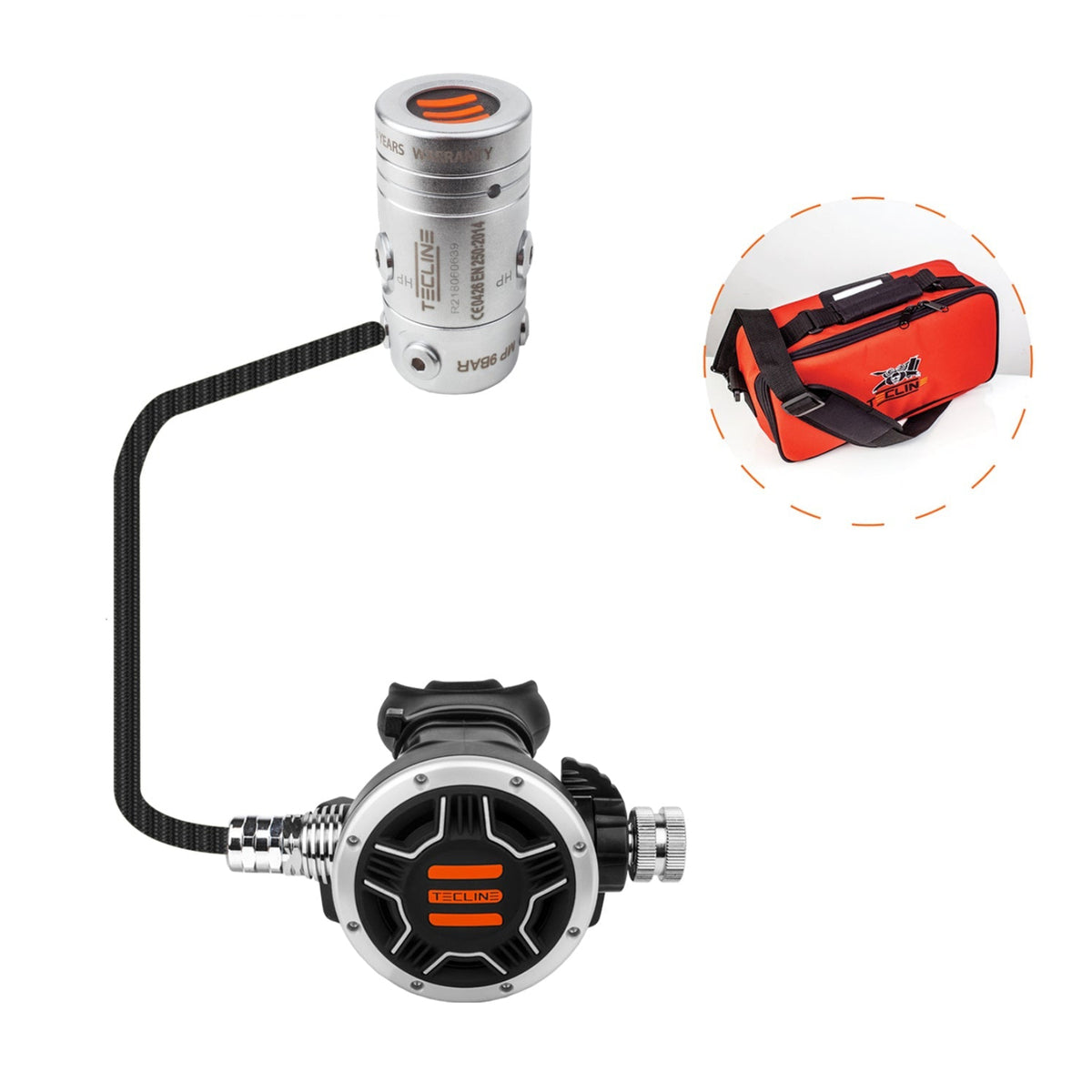

Regulator Set – 1st Stage R2 + 2nd Stage TEC1

High-performance complete regulator set with a swivel turret first stage and a balanced second stage, configurable for any underwater layout and optimized for cold water.

The Tecline R2 TEC1 Regulator Set, available at DIR-STORE, is by far one of the most versatile and appreciated systems by both advanced recreational and technical divers. Thanks to the combination of a hyper-balanced diaphragm first stage with a 360° swivel turret and a lightweight yet robust second stage, this kit adapts perfectly to any configuration: from single-tank to twin-tank, up to Sidemount systems and Stage cylinders. Certified beyond the stringent requirements of the EN250A standard, it guarantees impeccable airflow and total protection from freezing even in the coldest waters.

Technical Features:

• R2 TEC First Stage (360° Swivel Turret): Made of solid marine bronze, it uses a balanced diaphragm system with a dry chamber and an additional cooling kit, completely isolating the internal mechanics from cold, mud, and sediments. It features 2 high-pressure (HP) outlets and 4 low-pressure (LP) outlets on the turret (with the possibility of expansion to 5 LP), allowing for linear and clean hose routing in any configuration.
• TEC1 Second Stage (Compact and Balanced): A universal regulator weighing only 250 grams that reduces jaw fatigue without sacrificing robustness, also thanks to the aluminum front protection ring. The pneumatic balance compensates for depth variations, always ensuring smooth and natural inhalation.
• Total Control and Heat Exchanger: The second stage is equipped with an auxiliary heat exchanger positioned on the hose attachment to prevent free-flow from freezing. Via the micrometric knob for breathing resistance and the Venturi effect lever, the diver can customize the delivery effort in real time.
• Hose Flexibility and Customization: The set includes the original bag and gives the diver complete freedom to configure the regulator according to the geometry of their equipment, choosing both the millimeter length of the hose and the preferred compound (Traditional high-density Rubber or flexible Proflex Tecline braid).

Set Contents:

• Tecline R2 TEC 1st Stage (DIN 300 Bar connection with swivel turret)
• Tecline TEC1 2nd Stage (Black Cover)
• Low-pressure (LP) hose customizable by type and length
• Matching Tecline regulator case / bag (Red Color)

Technical Specifications:

• Manufacturer: Tecline
• First Stage Type: Balanced diaphragm with dry chamber and 360° turret
• Total 1st Stage Outlets: 2 HP (7/16") / 4 LP (3/8") — 5th LP port optional
• Main Materials: Chromed marine bronze (1st stage) / Technopolymers and aluminum (2nd stage)
• Second Stage Weight: 250 g
• Certification: EN250A (Approved for cold water)
• Layout Compatibility: Sidemount (Excellent), Stage/Deco (Excellent), Single-tank and Twin-tank (Good).
