Manifold Bi-valve M25x2 - Scubatec

The classic V-shaped double-outlet valve with asymmetrical, staggered outlets, designed to accommodate two independent first stages on a single cylinder.

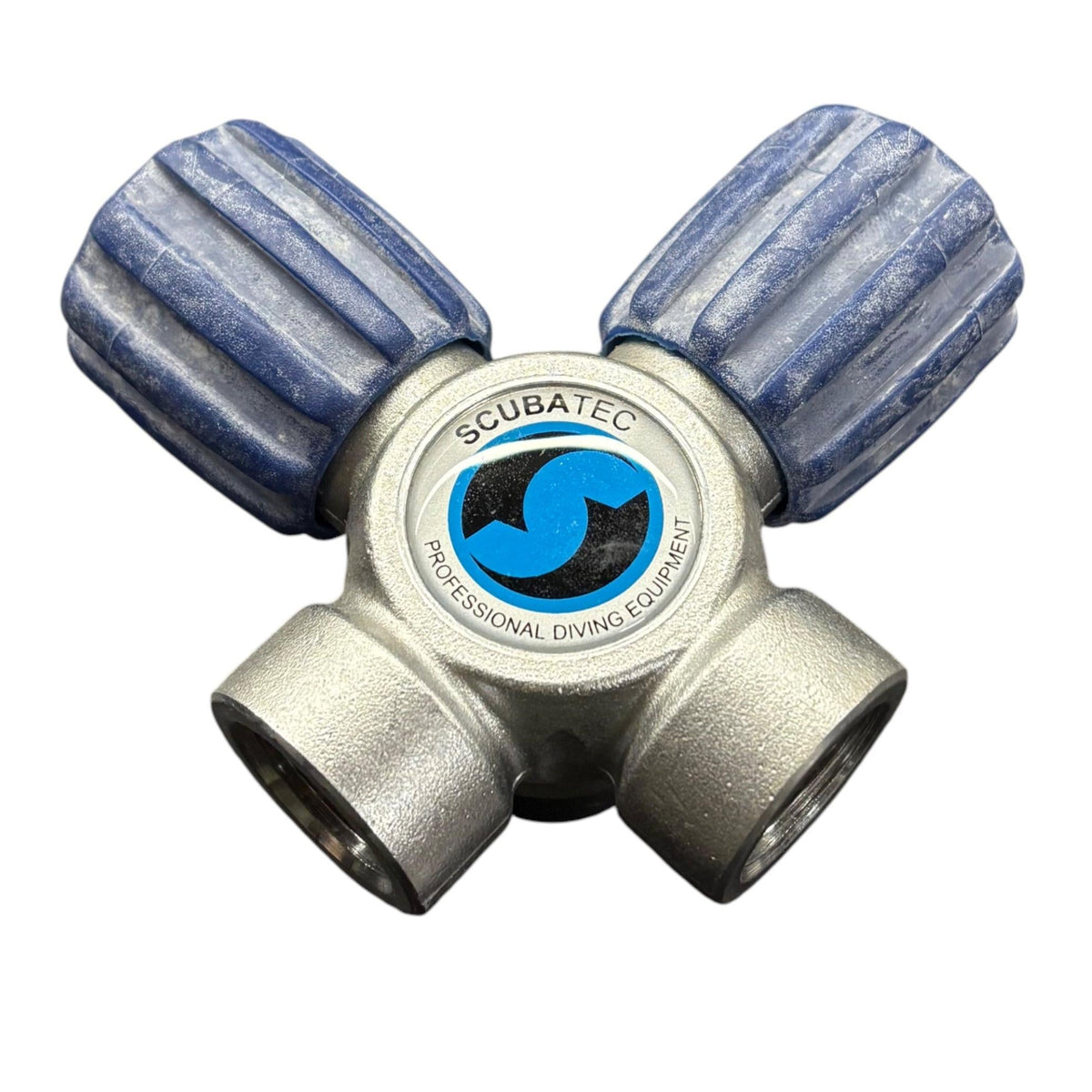

The Scubatec Offset Double-Outlet Single-Cylinder Valve, available at DIR-STORE, is one of the most iconic and sought-after components for advanced recreational and technical divers using a single-cylinder configuration. Thanks to its forged body with asymmetrical V-shaped (offset) outlets, this valve definitively solves the problem of space at the back of the head, allowing the simultaneous mounting of two separate first stages without the metal bodies or hoses touching or hindering each other.

Key Features and Benefits:

• Anti-Interference Offset Geometry: The two high-pressure turrets are positioned on angled and diverging planes. This configuration optimizes hose routing (regulators, BCD, drysuit, and pressure gauge), maintaining a hydrodynamic profile and avoiding forced bends in the hoses.
• Dual Function DIN/INT Connection (230 bar): Maximum flexibility of use in any geographical area or diving location. It natively supports the DIN 230 bar screw-in safety connection and can be instantly converted to an international yoke (INT) connection by simply removing the internal insert with an Allen key.
• Seal Configuration (NBR or Viton): The valve can be configured based on the breathing gas mixtures used. It is available with classic NBR compound O-rings for standard air use, or with Viton O-rings and dedicated lubrication for full compatibility with Nitrox mixtures and pure oxygen.
• High-Visibility and Grip Handwheels: Equipped as standard with blue anti-shock rubber knobs. The wide geometric grooves are designed to offer a firm grip and millimeter-precise valve maneuverability even when hands are wet or thick neoprene gloves are worn.


Why choose this Scubatec double-outlet valve?

• True Redundancy in Single Cylinder: Allows for complete separation of the primary and reserve (octopus) delivery systems. In the event of free-flow due to freezing or a first stage malfunction, the faulty valve can be isolated while maintaining access to the remaining gas reserve.
• 100% Made in Italy Reliability: Scubatec is synonymous with metallurgical excellence. The valve is forged from heavy marine brass and protected by a thick chrome plating that eliminates the risk of galvanic corrosion and resists scratches and accidental impacts in confined environments.

Technical Details and Specifications:

• Brand: Scubatec (100% Made in Italy)
• Model: V-shaped offset double-body double-outlet valve
• Neck thread: M25x2 (Universal European standard pitch)
• Outlet connection: Convertible DIN 230 bar / INT (Yoke)
• Operating pressure: 230 bar max
• O-Ring compound: NBR or VITON (Selectable during order placement)
• Handwheels: Geometric blue rubber with high grip
• Safety certification: Complies with European standard EN144
• Target use: Advanced Recreational Diving, Deep Diving, Training Courses
