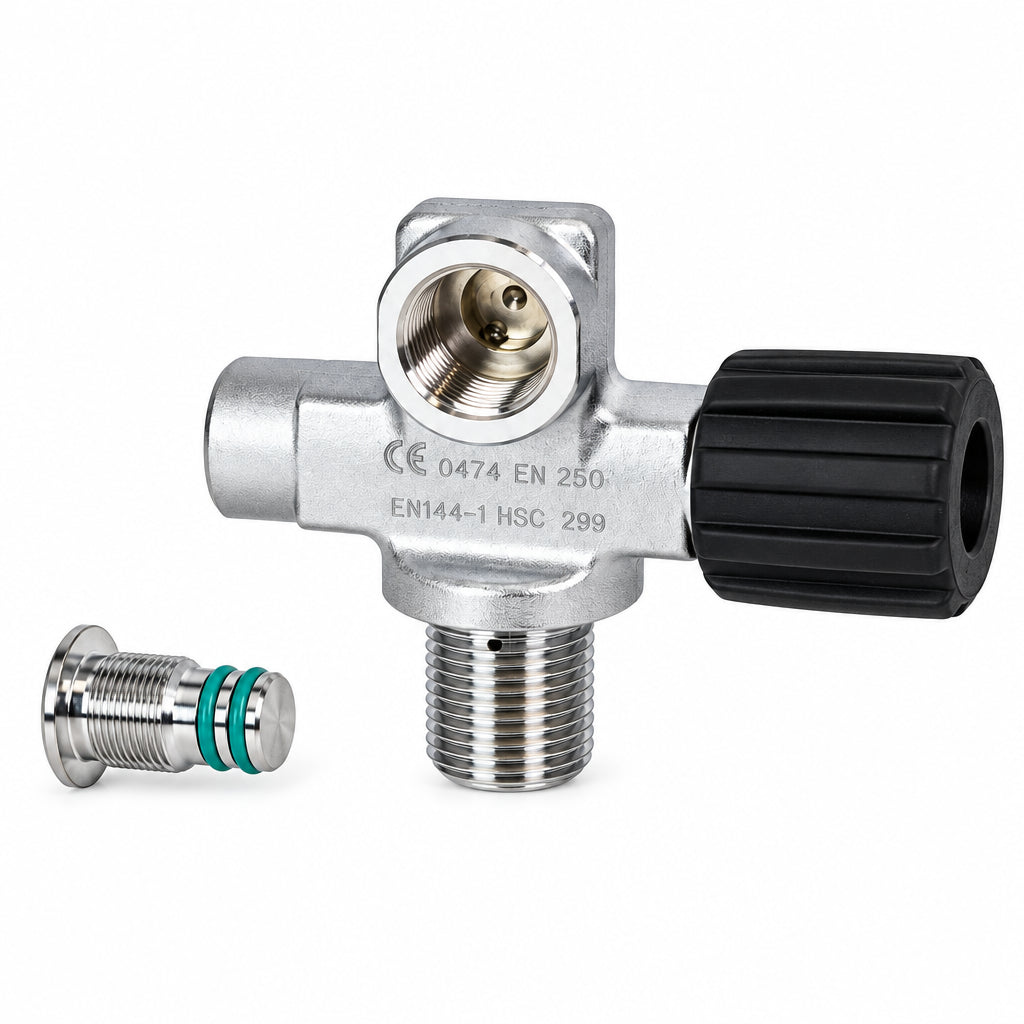

Scubatec Modular LONG Single Tap

The single cylinder valve with extended neck thread M25x2, supplied with Viton O-rings as standard for maximum compatibility with oxygenated mixtures.

The Scubatec LONG Modular Series Single Cylinder Valve, available on DIR-STORE, is a high-performance single-flow valve designed for maximum ergonomics and versatility. Thanks to its extended profile (LONG), the handwheel is positioned slightly further away than traditional valve bodies, making it easier to grip and access behind the diver's neck, even when wearing heavy undersuits or thick neoprene gloves. This valve is designed with a modular architecture that allows for expansion or modification of the system based on actual operational needs.

Modularity and Plug Choice:

The valve is fully configurable and can be ordered according to the geometry of your setup:

• Selectable Orientation: Available in Right (DX) or Left (SX) versions to allow for mirrored and symmetrical positioning of the first stages on the sides (Sidemount/Stage) or on the back.
• Option with or without Side Plug: Can be requested in a closed monoblock version or with a secondary outlet sealed by a removable reinforced side plug. By removing the plug, the valve can later be converted into a dual-outlet valve (mono-bi) or connected to a central manifold to form a twinset.

Key Features and Benefits:

• Natively Viton Equipped (Oxygen Clean): Assembled directly in Scubatec laboratories with Viton O-rings with high chemical and thermal stability. It is certified and 100% safe for use with Air, Nitrox mixtures, and pure decompression Oxygen.
• DIN 232 Bar Safety Connection: Features the standard DIN (G 5/8) screw connection, which offers maximum mechanical sealing of the intermediate pressure, preventing accidental extrusion of the pressure reducer's gasket.
• Heavy-Duty Chrome Plated Marine Brass: Entirely made from high-strength forged naval brass, protected by thick polished chrome plating that shields the metal from saltwater corrosion and resists scratches and hard impacts.
• Ergonomic Soft-Grip Handwheel: Equipped with a robust black anti-shock rubber knob. The deep geometric carving ensures a firm grip and excellent maneuverability of the valve even in icy waters with dry gloves.

Technical Details and Product Specifications:

• Brand: Scubatec (100% Made in Italy)
• Model: LONG Modular Series (Expendable Mono Valve)
• Neck Thread: M25x2 (Standard European universal pitch)
• Regulator Connection: DIN 232 bar (G 5/8)
• Orientation: Right (DX) or Left (SX) Selectable
• Body Configuration: With side plug or Without side plug (Selectable)
• O-Ring Compound: Viton as standard (Oxygen / Nitrox / Air compatible)
• Handwheel: Textured black rubber with high grip
• Safety Certification: Complies with European standard EN144
• Target Use: Technical Diving, Decompression Stages, Sidemount, Advanced Recreational
