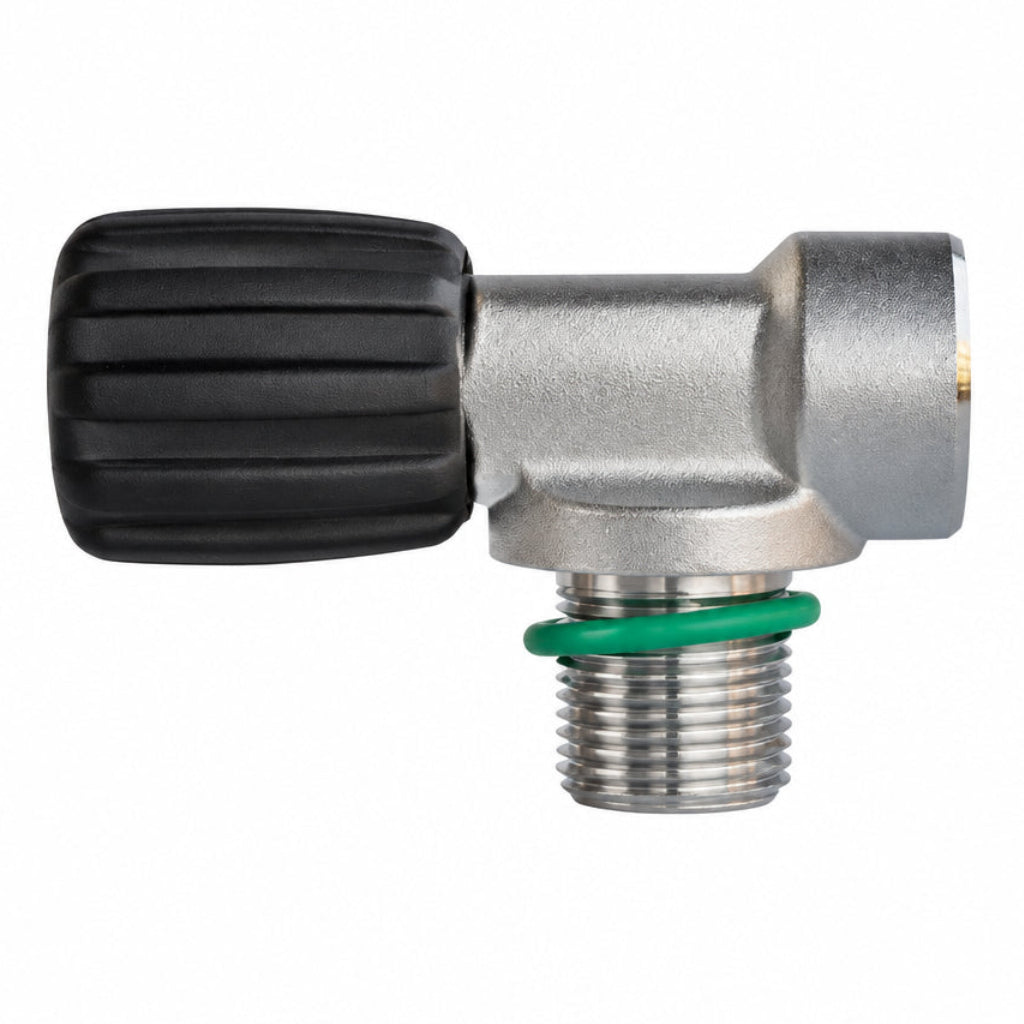

Single Tank Valve Rebreather EVO

The ideal compact in-line valve for Rebreathers (CCR) and technical cylinders.

The Scubatec EVO valve, available on DIR-STORE, is the best-selling and most appreciated model by rebreather (CCR) users. It is not a common readapted valve, but a valve designed from scratch to occupy the least possible space and ensure maximum practicality in closed-circuit systems. Its peculiarity is that the outlet where the regulator screws in is perfectly in line with the knob, preventing flows or hoses from protruding sideways.

Strengths:

• Machined from Solid: It is obtained directly from a block of marine brass using high-precision machinery (CNC) and finished with a polished protective chrome plating. This makes it incredibly robust and free of internal defects.
• Minimal Bulk: The in-line outlet allows the first stage of the regulator to remain close to the cylinder. This eliminates the risk of equipment touching the counterlungs or the rebreather's shell.
• Easy-to-Grip Knob: The soft rubber handwheel offers an excellent grip even when wearing thick or dry gloves, allowing gas to be opened and closed smoothly and quickly.

Available Configurations:

• Pressure: Available in the standard version for 232 bar systems.
• Orientation: Can be ordered both Right (DX) and Left (SX) to mount them perfectly symmetrically on both sides of the rebreather (e.g., Diluent cylinder and Oxygen cylinder).
• Seals (O-Rings): Selectable with standard NBR O-rings (for air) or Viton (specific for safe use with pure oxygen).

Brief Technical Data Sheet:

• Manufacturer: Scubatec (100% Made in Italy)
• Cylinder Thread: M25x2 (Universal Standard)
• Regulator Connection: DIN 232 bar (G 5/8)
• Recommended Use: Oxygen and Diluent Cylinders for Rebreathers, compact technical sidemount cylinders.
