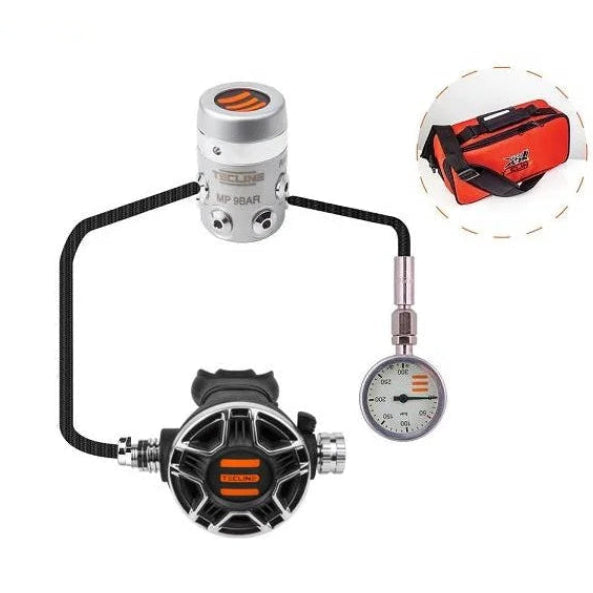

Stage Regulator Set – R4 First Stage + TEC2 Second Stage + Pressure Gauge

The top-of-the-range dry chamber (anti-freeze) regulator kit, ideal for setting up stage/deco cylinders in any condition, including ice diving. It combines the thermal insulation of the R4 TEC first stage with the advanced fluid dynamics of the balanced TEC2 second stage. Customize the type of LP hose and select the size and material of the HP hose from the drop-down menu.

The Tecline R4 TEC + TEC2 + SPG Stage Regulator Set, available on DIR-STORE, represents the ultimate in performance and free-flow protection for decompression gas management.

Unlike wet chamber systems, this kit uses the R4 TEC balanced diaphragm first stage, equipped with a dry sealed chamber, which completely isolates the internal mechanisms from icy water and suspended particles. It is paired with the black TEC2 second stage, a pneumatically balanced regulator featuring a DFS (Direct Flow System) and an integrated heat exchanger, designed to offer exceptionally smooth and natural breathing.

Main Features of the Set:

R4 TEC Dry Chamber First Stage (Anti-freeze Protection):

• Balanced Diaphragm with Dry Chamber: Isolates the spring and piston from direct contact with water. Ideal for winter diving, cold water, or areas with high sediment presence.
• Constant Performance: Ensures a balanced and powerful airflow at any depth and with any residual cylinder pressure (DIN 300 bar connection, 4 LP ports / 2 HP ports).
• Chromed Marine Bronze Body: Robust, hydrodynamic, and resistant to salt corrosion.

TEC2 Black Second Stage (Top-of-the-Range Balanced):

• Pneumatic Balancing & DFS System: Optimizes gas fluid dynamics inside the casing, minimizing inhalation effort.
• Dual Micrometric Control: Equipped with a knob for adjusting initial inhalation effort and a lever for the Venturi effect (essential for eliminating free-flow when the stage is attached to the harness and not in use).
• Reversible and Ergonomic Casing: Made of high-resistance technopolymer with a stainless steel front ring.

SPG 52 mm Technical Pressure Gauge: Compact analog instrument with a 52 mm metal casing for clear and immediate monitoring of cylinder pressure.

🛒 Customization: Configure the perfect routing for your stage from the drop-down menu:

• LP Regulator Hose: Fixed length at 100 cm. You can choose the type between classic Thermoplastic Rubber or flexible Proflex (supplied as standard in black Proflex version).
• HP Pressure Gauge Hose: Choose the short stage size (15 cm or 20 cm) and the material type between Thermoplastic Rubber or Miflex.

Standard Set Contents (Configurable):

• 1x Tecline R4 TEC DIN 300 Bar First Stage (Balanced diaphragm with anti-freeze dry chamber)
• 1x Tecline TEC2 Reversible Second Stage (Black)
• 1x SPG 52 mm Metal Pressure Gauge
• 1x 100 cm Black Proflex LP Hose (thermoplastic rubber or Proflex type selectable)*
• 1x 20 cm Black Rubber HP Hose (15/20 cm size and thermoplastic rubber or Miflex type selectable)*
• 1x Tecline Regulator Bag
