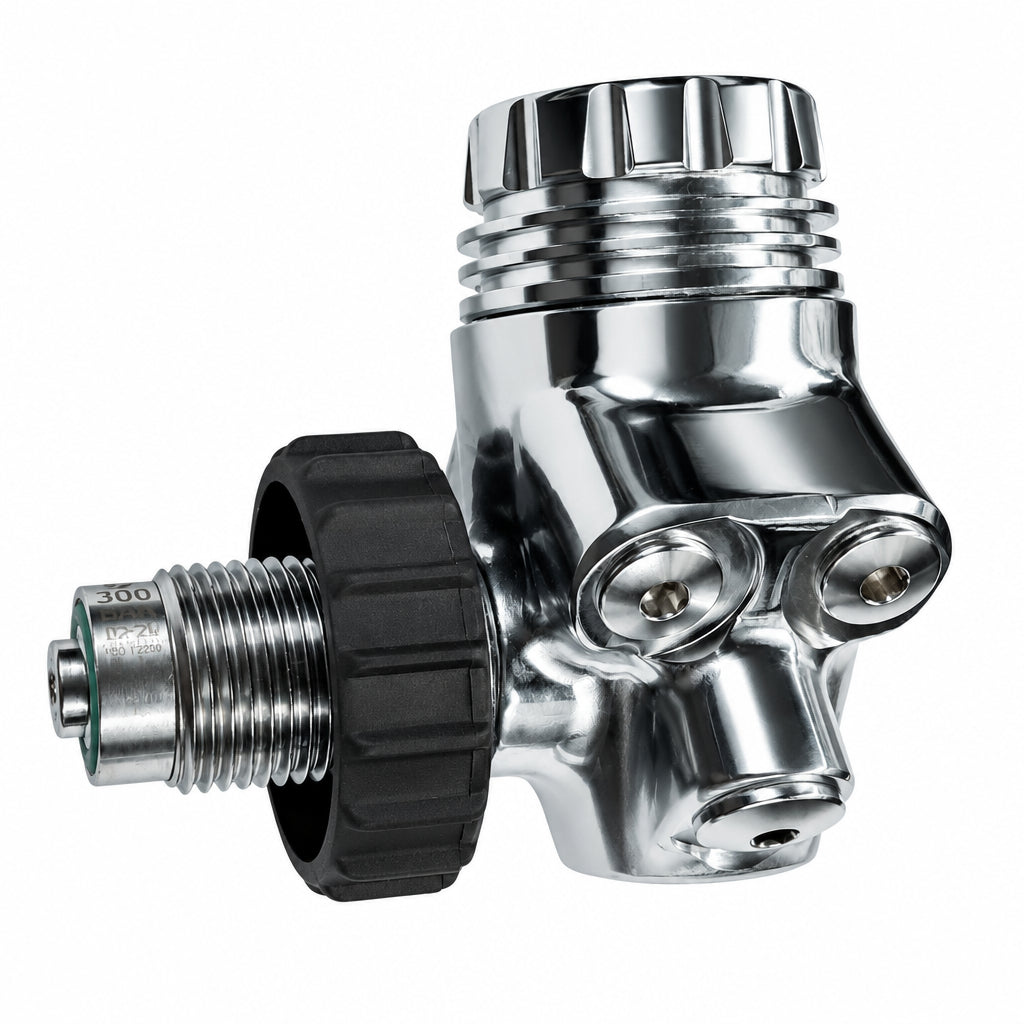

First Stage F60 - Viton

Monolithic balanced diaphragm regulator with downward-angled LP/HP ports, lamellar radiator head, available with 232 bar or 300 bar DIN connection.

The Scubatec F60 Viton First Stage, available on DIR-STORE, represents the excellence of Italian underwater manufacturing applied to hydrodynamic comfort. Made through a hot stamping process from a single monolithic brass block, this balanced diaphragm first stage stands out for the particular geometric inclination of its outlets. Designed to optimize airflow and hose routing, it eliminates tangles and allows hoses to naturally descend along the diver's body, offering superior breathing performance and consistent delivery fluidity at any depth.

Key Features and Benefits:

• Angled Anti-Tension Outlets (4 LP / 2 HP): It features 4 low-pressure outlets (LP 3/8″ UNF) angled at 30° and 2 high-pressure outlets (HP 7/16″ 20 UNF) angled at 50° relative to the main axis. This precise orientation naturally directs all hoses downwards, eliminating forced bends and tension on the diver's mouth.
• Lamellar Radiator Head: The body integrates a special lamellar head that maximizes heat exchange with the surrounding environment. Together with isolated diaphragm technology, it makes the regulator suitable for diving in cold or contaminated water. For more extreme contexts, it is pre-arranged for the optional installation of the Anti-Freeze Kit.
• Hot-Stamped Monolithic Construction: The compact monoblock structure guarantees superb structural robustness against violent impacts and minimizes joint points, ensuring long-lasting hermetic sealing.
• Natively Oxygen / Nitrox Ready: This elite version is assembled directly at the factory with Viton O-rings (standard NBR compound also available upon request) and lubricated with oxygen-compatible grease. It is 100% safe and ready for use with Enriched Oxygen Mixtures.
• Dual DIN Connection Option (232 / 300 bar): In full compliance with the European standard EN 250:2014, the regulator can be purchased with either a 232 bar DIN threaded connection or a 300 bar DIN connection, guaranteeing a solid, stable, and micro-leak-free connection on any type of high-pressure valve.

Why buy the Scubatec F60 Viton first stage?

• Perfect for advanced Octopus configurations: The combined 30° and 50° inclination of the ports makes it the ideal choice as a primary source on advanced recreational and single-tank systems, as it allows for symmetrical, clean, and aerodynamic distribution of the main hose, octopus, BCD, and dry suit.
• Top-level breathing comfort and fluidity: The optimized internal design ensures massive and effortless airflow, drastically reducing breathing work even in the most demanding and deep dives.
• 100% Made in Italy quality and manufacturing: Exceptional robustness, refined metallic finishes, and maximum simplicity of maintenance with Scubatec spare parts always in stock.

Technical Details and Configuration Compatibility:

• Brand: Scubatec
• Model: F60 Viton
• Construction: Hot-stamped monolithic (100% Made in Italy)
• Mechanism: Balanced diaphragm with lamellar radiator head
• Connection: DIN 232 bar or DIN 300 bar (Selectable at time of purchase)
• Port geometry: 4 LP angled at 30° / 2 HP angled at 50°
• Gas compatibility: Natively compatible with Oxygen/Nitrox (Viton O-rings + O2 grease)
• Thermal Protection: Suitable for cold/contaminated water (Pre-arranged for optional Anti-Freeze Kit)
• Single Tank / Advanced Octopus Configuration: Excellent (Ideal use case)
