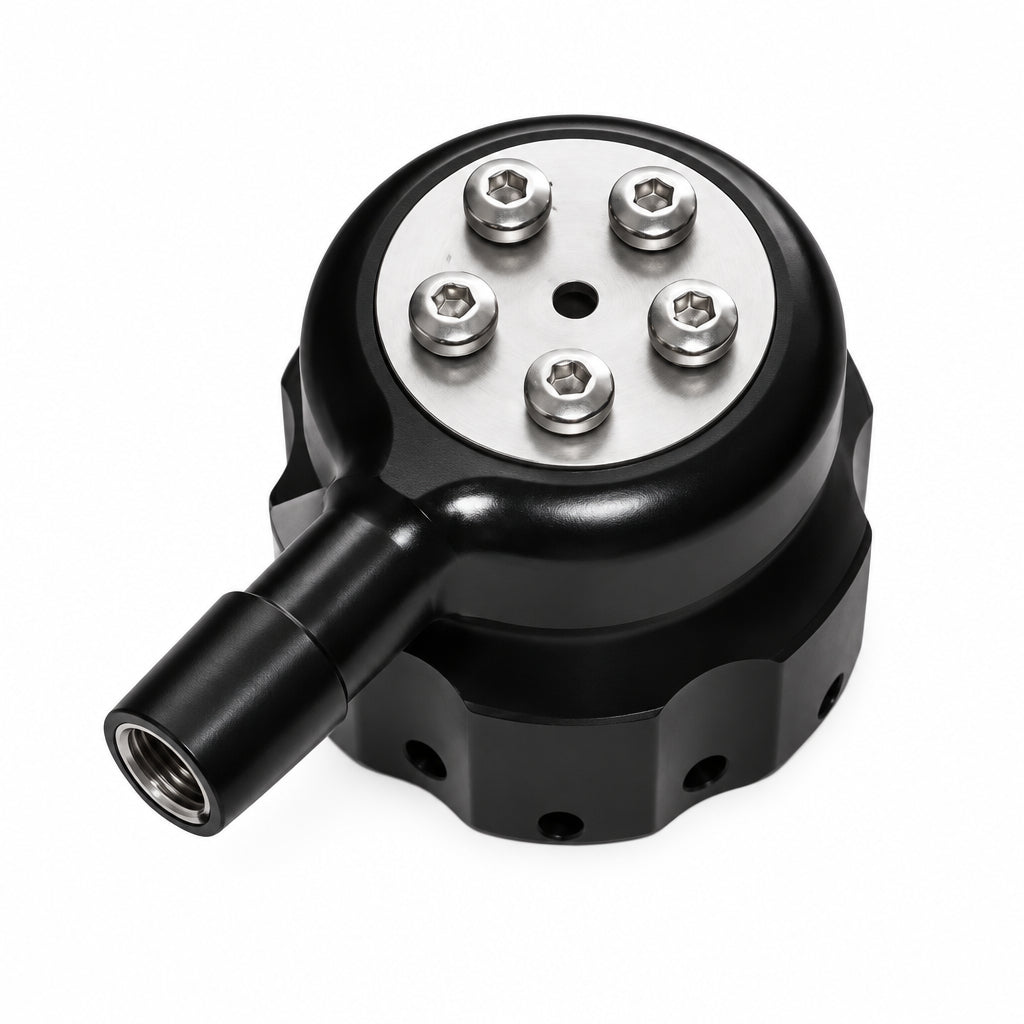

The Heser P-Valve is the only Pee Valve that can be installed without being glued to the suit.
With the Heser P-Valve, you do not need to glue the valve to the drysuit like all other P-Valves.
With Heser Pee Valves, you can remove the P-Valve for cleaning, and you can also install it on another drysuit.
The maximum size of the valve inside the drysuit will be only 13 mm, so it will not interfere with finning.
Heser P-Valves are secured with five pressure screws that ensure the O-rings are sealed.
In this way, the cover can be opened without unintentionally removing the entire valve.
Note: the screws are well rounded and do not damage the undersuit.
For the five screws, threaded metal bushings are inserted into the plastic part.
The valve can be opened and closed with a simple rotation.
The cover cap has a defined and exact stop and rotation.
Technical specifications:
- Flow rate with 0.5 m manometer (corresponds to 0.05 bar): 2 liters/min
- Hole diameter: 18/20mm
- Internal depth inside the suit approx. 13 mm
- Cover cap diameter: 42mm
- External height from the suit approx. 20 mm
- Balanced version
What you will find in the package:
- 1 x Heser PeeValve
- All screws and gaskets for assembly
- 0.6 m hose
- 1 x Condom connector
