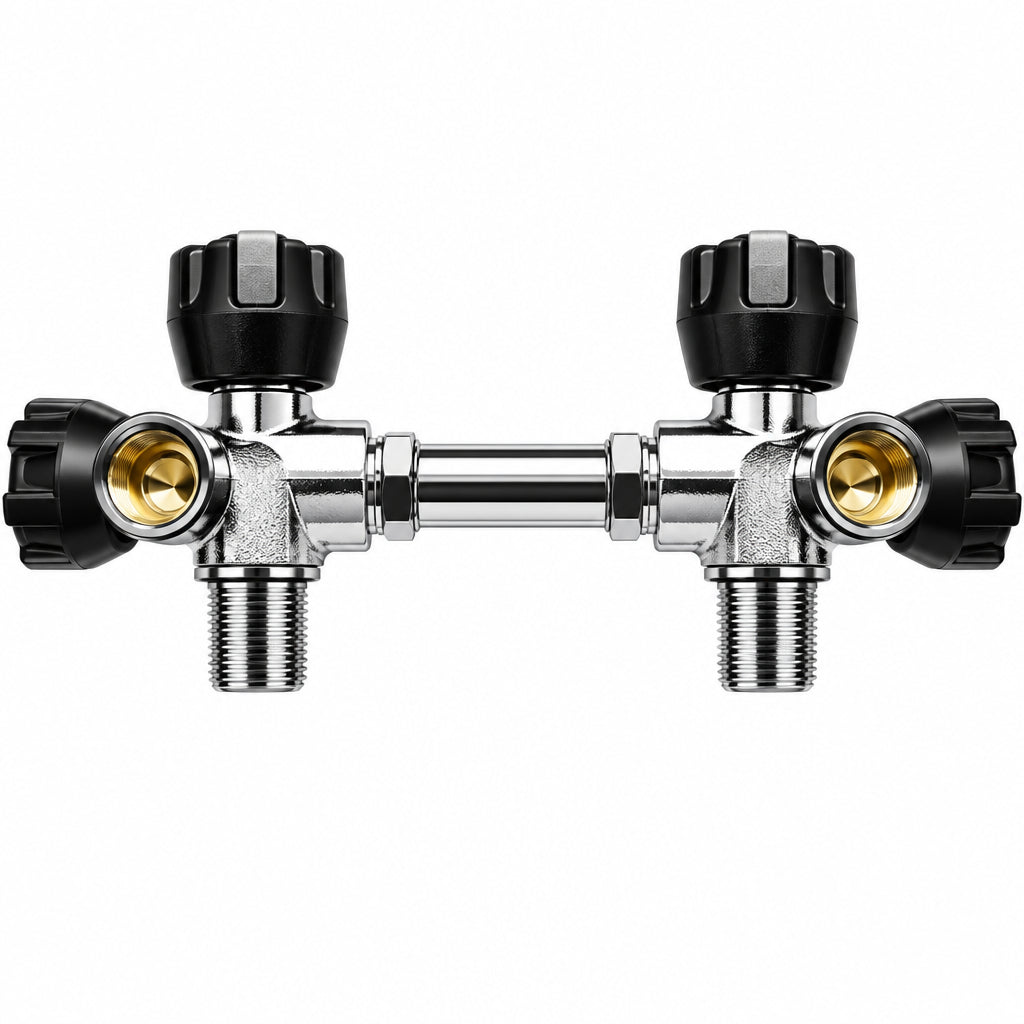

Manifold for Twinset M25x2 230 bar - LOLA

The LOLA M25x2 Manifold, available from DIR-STORE, is a versatile and robust valve assembly designed for twinset systems. A distinctive feature of this model is the presence of special turrets with convertible DIN/INT 230 bar connections, allowing for a quick switch from a DIN screw-type connection to an international (INT) yoke-type connection by simply removing the insert. Structured according to technical diving standards, it integrates a central isolating valve to separate the two gas flows in an emergency, ensuring maximum redundancy.

Isolator (Central) Measurements and Compatibility:

The central isolating manifold is available in three different lengths to perfectly adapt to cylinder diameters and chosen band spacing:

• 140 mm Isolator: Optimized for compact or narrow-spaced twinsets, ideal for 7+7 liter or 8.5+8.5 liter combinations.
• 171 mm Isolator: The classic and most common standard, designed for traditional 10+10 liter and 12+12 liter twinsets.
• 204 mm Isolator: Extended, wide-spaced version, specific for large diameter and high-capacity cylinders such as 15+15 liter or 18+18 liter systems.

Key Features and Benefits:

• Convertible DIN/INT Connection (230 bar): Maximum operational flexibility. Allows use with both DIN screw-type and INT yoke-type first stages, making it ideal for travel or dive centers.
• Tactical Geometry and Safety: Symmetrical dual outlet with central isolating valve for separate and redundant management of first stages, minimizing the risk of total gas loss.
• Universal M25x2 Neck Thread: Standard M25x2 installation thread, compatible with all modern steel cylinders.
• Heavy-Duty Chromed Marine Brass: High-resistance stamped valve body with thick protective chrome plating to prevent salt corrosion and withstand accidental impacts in obstructed environments (wrecks or caves).

Technical Details and Configuration Compatibility:

• Brand: LOLA
• Model: Manifold with central isolator for Twinset
• Cylinder thread: M25x2
• Regulator connections: Convertible DIN/INT 230 bar
• Isolator spacing: 140 mm / 171 mm / 204 mm (Selectable)
• Gas Compatibility: Air / Nitrox and Trimix Blends
• Target Use: Technical Diving, Advanced Recreational, Travel
