Manifold for Twin Cylinder M25x2 EN144 - Scubatec

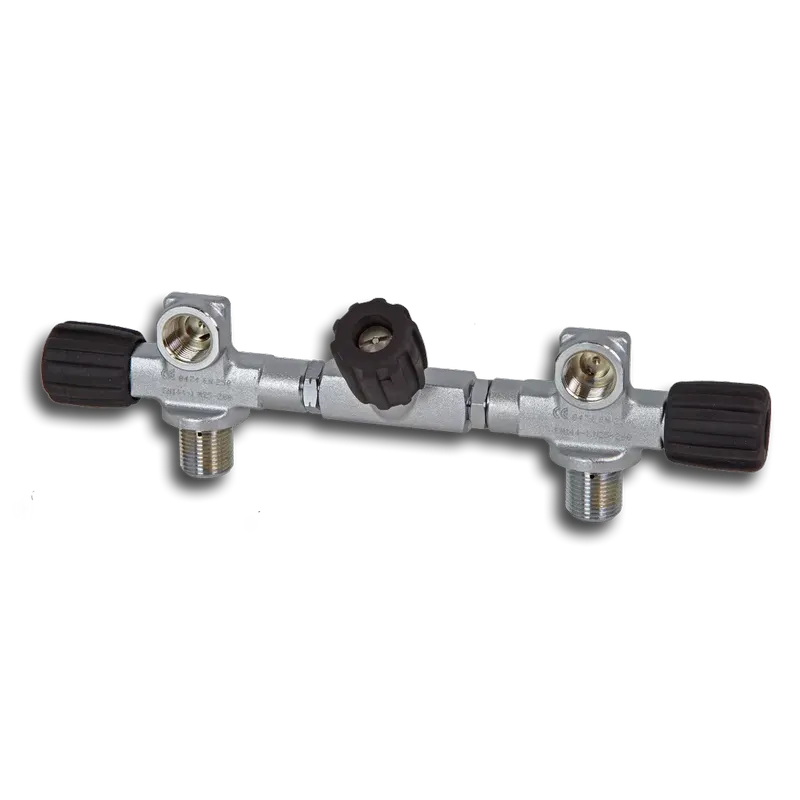

The Scubatec M25x2 Manifold, available from DIR-STORE, is a high-quality engineered valve manifold specifically designed for twinset assembly. It represents the state of the art for technical divers and OTS (Underwater Technical Operators) professionals who demand maximum reliability, robustness, and modularity in managing their gas supply. Thanks to the system with a central isolating valve, this manifold allows for the instantaneous separation of the two gas flows in the event of a first stage or manifold failure, faithfully following the rigorous standards of the DIR philosophy and the TEC Style System.

Isolator (Central) Measurements and Compatibility:

The central isolating fitting of the manifold is available in different lengths depending on the cylinder diameter and the spacing required by the diver:

• 140 mm Isolator: Specific for twinset configurations with narrow spacing, ideal for 7+7 liter or 8.5+8.5 liter cylinders (long/concave profile).
• 171 mm Isolator: The industry standard, designed for use with classic 10+10 liter and 12+12 liter twinsets with standard bands.

Key Features and Configuration:

• Tactical Geometry and Safety: Dual symmetrical DIN output with a central watertight barrier isolating valve. Allows for redundant and independent management of air sources during a dive.
• Heavy-Duty Chrome Plated Naval Brass: Constructed from precision-machined stamped marine brass, with a high-thickness polished chrome plating that provides total protection against the corrosive action of saltwater.
• Standard M25x2 Neck Thread: Universal M25x2 installation thread, fully compliant with European regulations and compatible with all modern steel or aluminum cylinders.
• Litre Capacity and Operating Flexibility: Supports an extended range of configurations (BIBO 7L, 8.5L, 10L, 12L, 15L, and 18L) and can be purchased in structural variants for operating pressures at 232 bar or high pressure at 300 bar.

Technical Details and Maneuvering Comfort:

• Extended Gas Compatibility (Nitrox/Trimix): Assembled directly at the factory with special lubricants of very high thermal and chemical resistance, making it suitable for safe use with Air, Nitrox, and Trimix.
• Seal Choice (NBR / Viton): Can be ordered with standard NBR compound O-rings or in the elite configuration with Viton O-rings, specific for safe use with advanced hyper-oxygenated mixtures.
• Soft-Grip Rubber Handwheels: Equipped as standard with soft, high-grip, anti-shock rubber handwheels. They facilitate opening, closing, and isolation (shut-down) maneuvers even in extreme conditions, with cold hands or while wearing dry gloves and thick neoprene gloves.

Technical Details and Configuration Compatibility:

• Brand: Scubatec (100% Made in Italy)
• Model: Manifold with central isolator for Twinset
• Cylinder thread: M25x2
• Regulator connections: DIN 232 bar or DIN 300 bar (Selectable)
• Isolator spacing: 140 mm or 171 mm (Selectable)
• O-Ring compound: NBR or VITON (Selectable)
• Certification: Complies with EN144 standard
