F60 1st stage service kit

The Scubatec F60 First Stage Overhaul Kit, distributed by DIR STORE, is the set of original and certified spare parts necessary for the routine and extraordinary maintenance of this specific hyperbalanced diaphragm model.

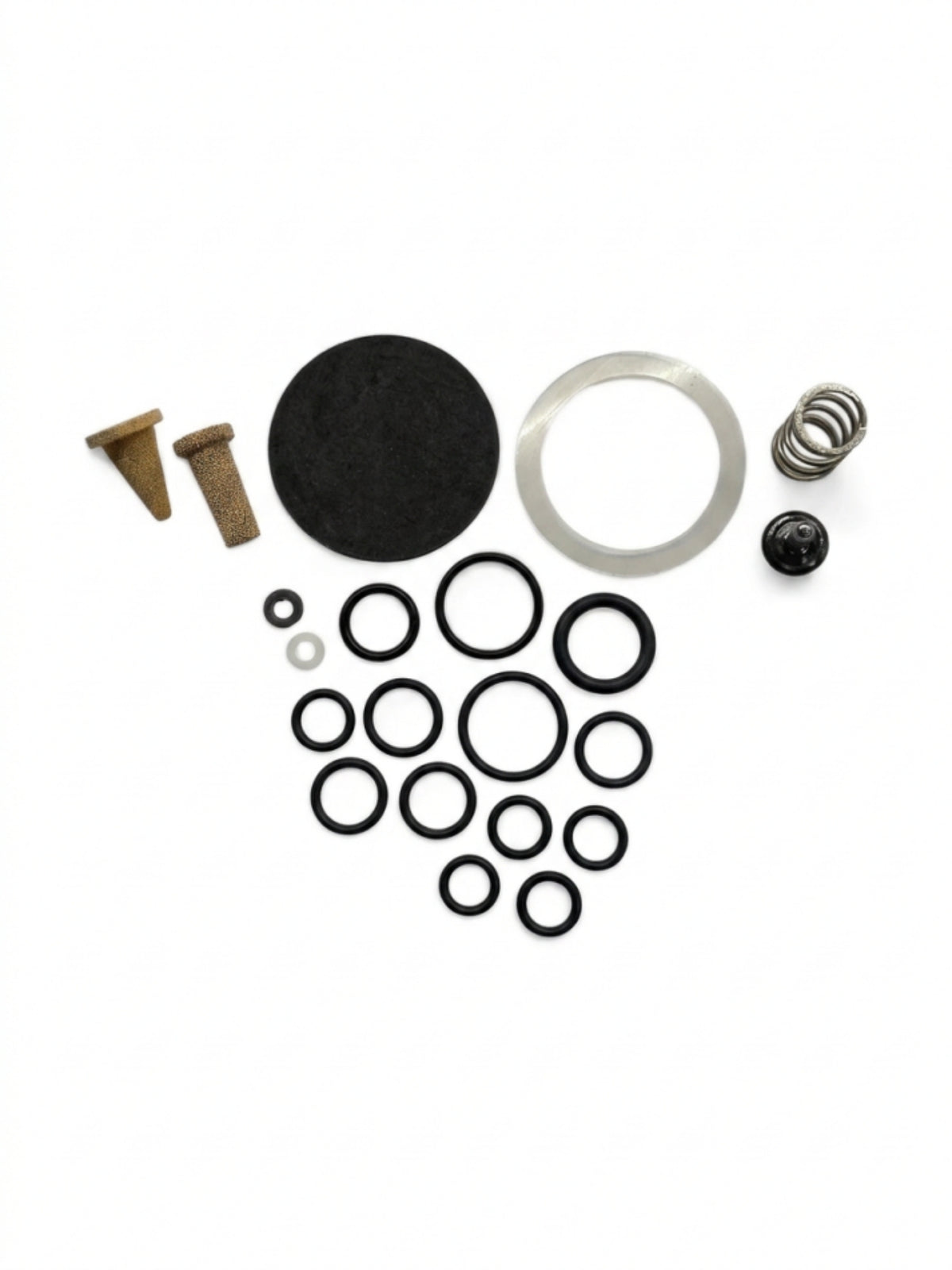

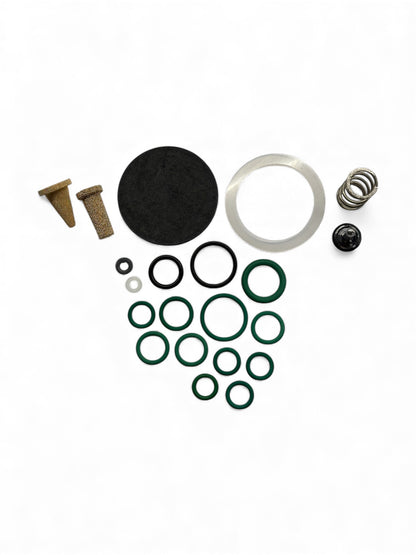

Kit Composition

The kit includes exclusively original Scubatec parts, made with high-resistance materials selected to operate in harsh conditions (cold water and deep dives):

High Pressure Seat (HP Seat / Pellet): The critical technical polymer component that seals the high-pressure air flow. Its replacement is essential to prevent abnormal intermediate pressure (IP creep).

Main Diaphragm: Made of special high-sensitivity elastomer, it transmits ambient pressure to the internal mechanism for precise delivery balancing.

Sintered Filter: Filtering element (usually conical or cup-shaped) placed at the inlet of the DIN connection to protect internal mechanisms from particulate matter, rust, or impurities from the cylinders.

Complete Set of Sealing O-Rings

Teflon (PTFE) Gaskets and Anti-Extrusion Rings: Sliding washers designed to reduce friction between metal parts and prevent O-ring deformation under load.

Safety Clip (C-clip): Metallic elastic ring necessary for securely fastening the swivel turret to the first stage body.

Technical Specifications and Compatibility

Model: Specific and exclusive for Scubatec F60.

Gas Compatibility: The components are certified for use with Air and Nitrox (up to 40%). For use with higher oxygen percentages, degreasing and cleaning of metal components according to Oxygen Clean standards are mandatory.

Certification: Original spare parts that ensure the maintenance of CE marking and manufacturer's warranty.

Safety and Installation Notes

Professional Maintenance: Overhauling a hyperbalanced diaphragm first stage like the F60 requires specific equipment (ultrasonic bath, precision gauges, torque wrenches). It is recommended that the kit be installed exclusively by Scubatec authorized technicians.

Procedure: Before assembly, all metal components must be carefully descaled to remove salt residues that could compromise the sealing of the new gaskets.

Lubrication: Use only a minimal film of oxygen-compatible silicone grease (e.g., Christo-Lube) only in the friction points specified in the technical manual.
