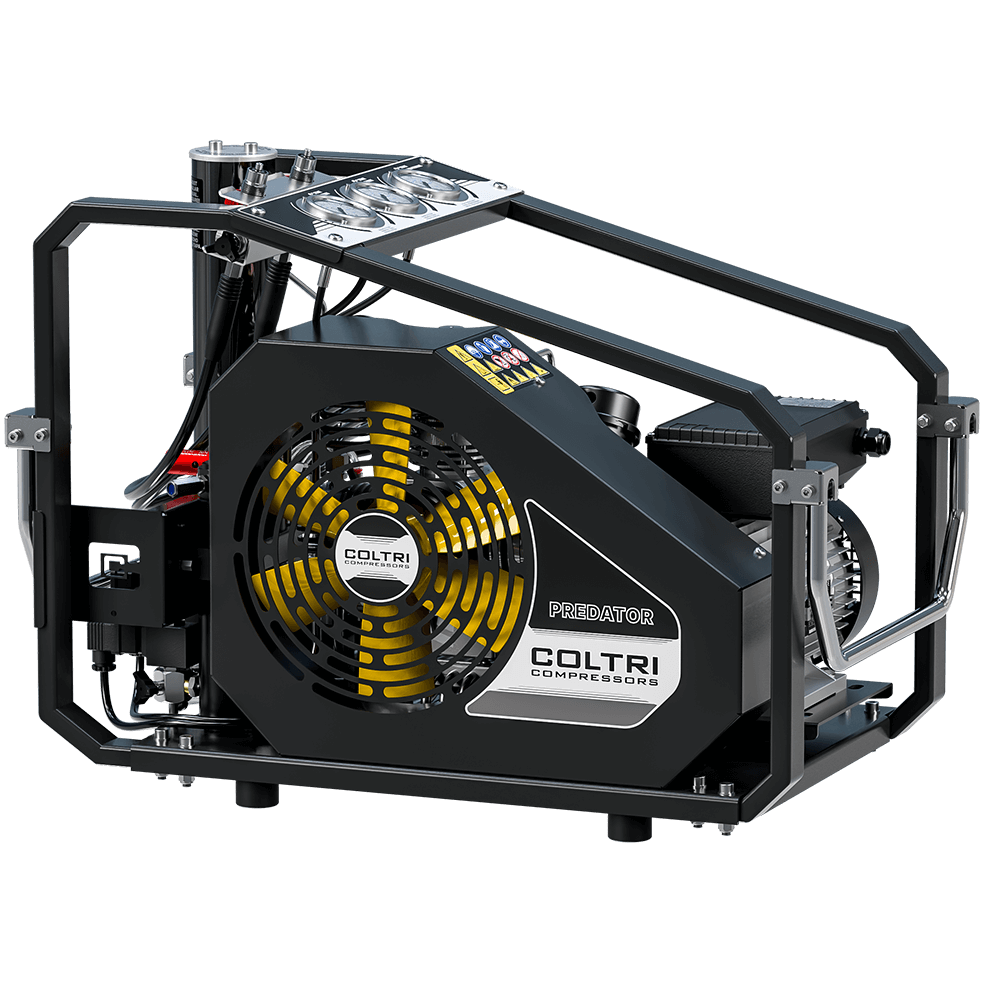

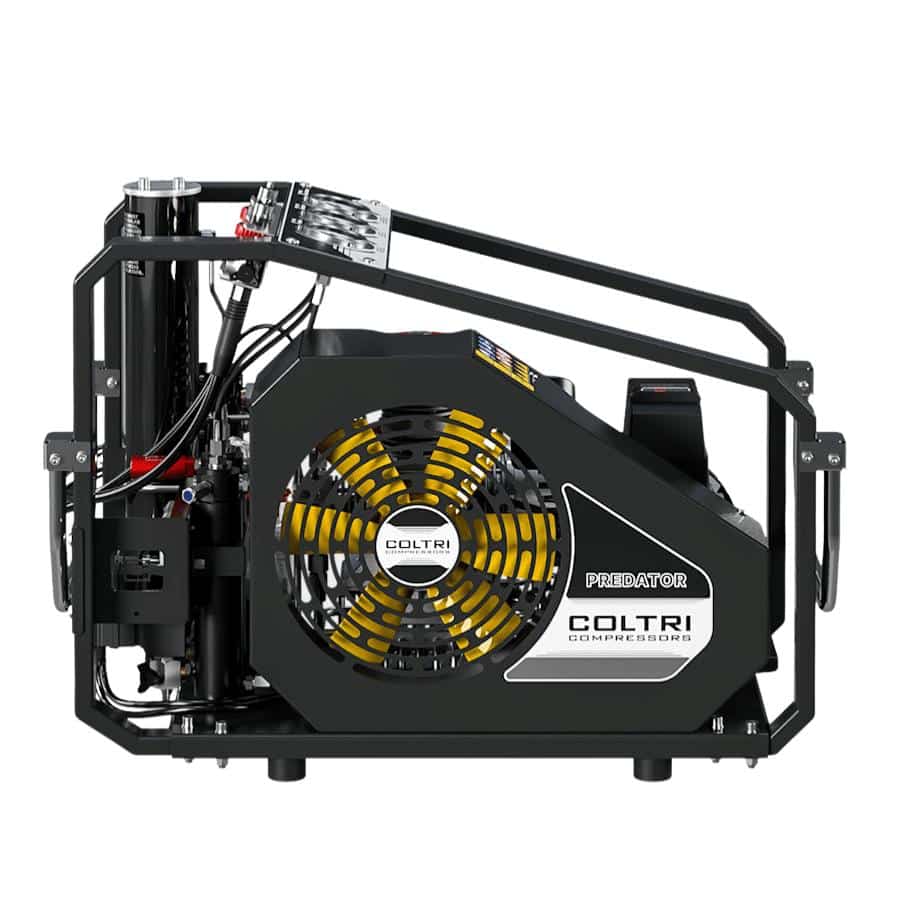

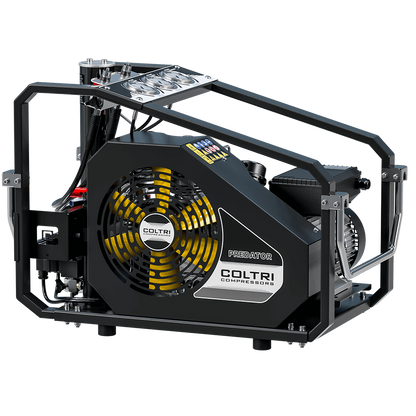

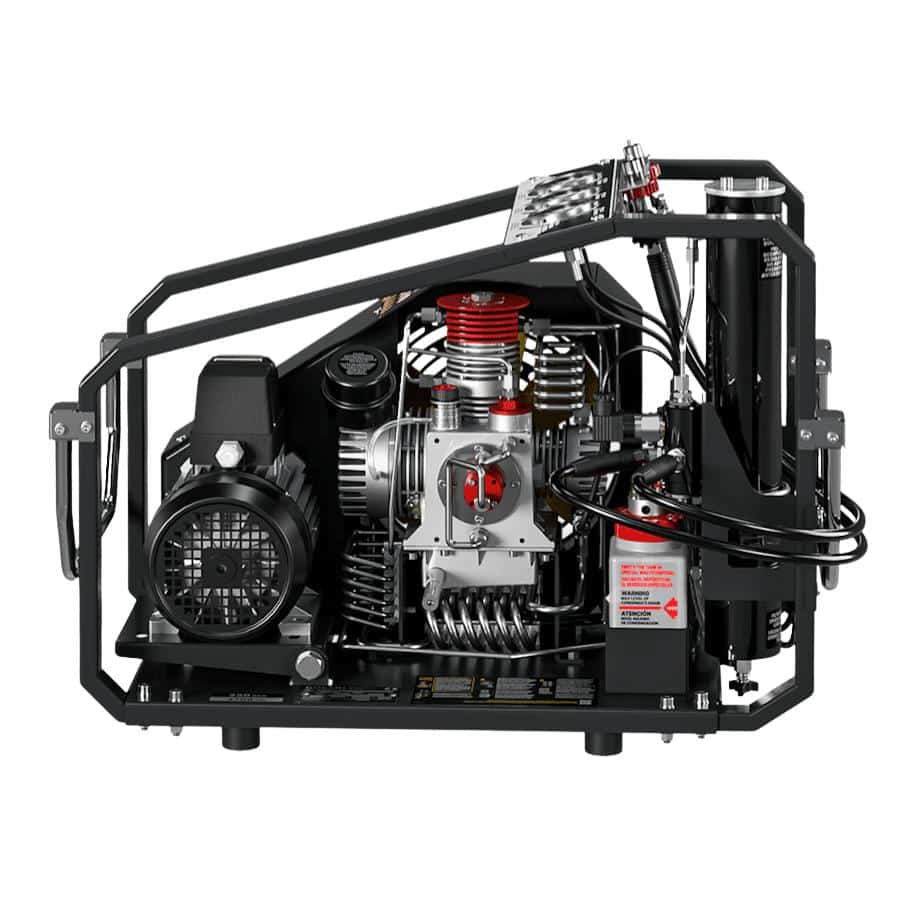

The PREDATOR breathing air compressor has a flow rate of 140 l/min and a 3 kW single-phase or three-phase motor. It is designed to ensure efficiency and reliability everywhere. Equipped with automatic condensate drain and auto-stop, it integrates the new MCH 7 3-stage pumping unit and the Maxifilter purification system for consistently safe air. The ergonomic handles make it easy to transport, while the optional C-Monitor allows for monitoring of the final filter and oil change.
Powerful, compact, technological: PREDATOR is ready for any challenge.
Standard equipment:
- 2 cylinder connections, chosen from DRV DIN 232, DRV DIN 300, or DRV INT/YOKE 232 bar
- 2 hoses, 1.2 m long
- Pressure retaining valve
- Maxifilter filtering system
- Transport handles
- Frame color: Black RAL 9005
Technical specifications:
- Gas type: Breathing air EN 12021 – Nitrox 40% max O2 – Helium – Nitrogen
- Suction pressure: Atmospheric max 300 millibar
- Rated pressure: 230 bar / 330 bar
- Operating pressure: 230 bar / 330 bar
- Max operating pressure: 350 bar
- Permitted temperature range: -10° C ÷ +40° C
- Permitted altitude range: 0 ÷ 2,000 m SLM
- Maximum permitted inclination: 6°
- Design: Protective cabinet
- Operating voltage, standard: 230 V, 60 Hz / 400 V, 50 Hz
- Other operating voltages: For three-phase electric motors at 60 Hz power (kW / hp), increase by 20%. 230 V, 50 Hz / 440 V, 60 Hz
- Oil: Coltri ST 755 synthetic oil
- Oil change interval: 1 year / 1,000 h
- Frame: Steel – Color Black RAL 9005 – Powder coating – Scratch-resistant
