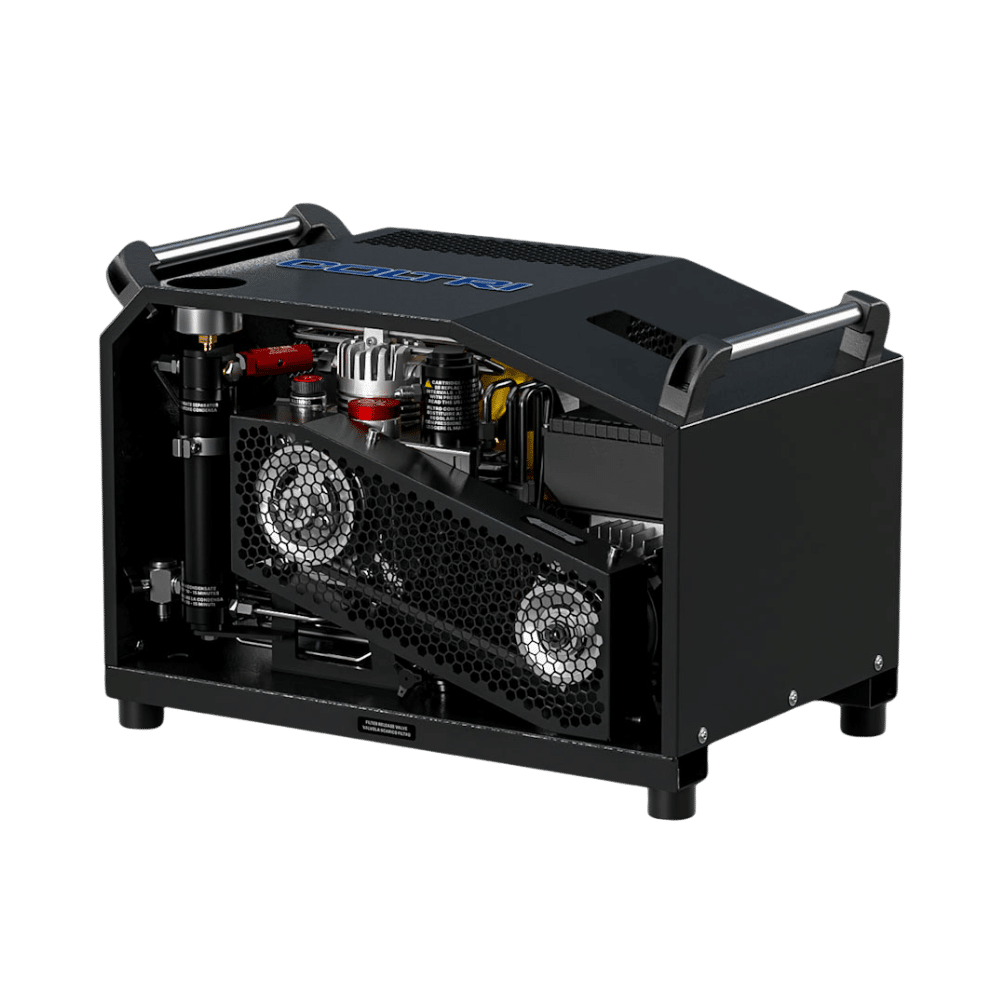

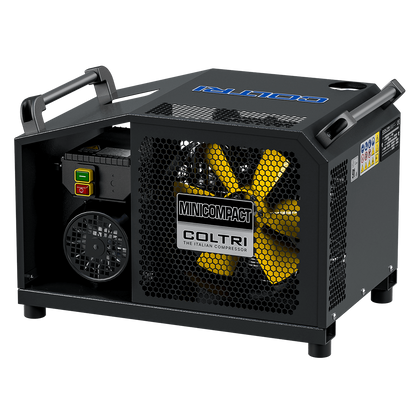

The Mini Compact range of compressors is very popular in the marine sector, thanks to its more encompassing reinforced frame. All equipped with the popular GP 100 pumping unit, they are available with petrol or electric engines, both three-phase and single-phase.
The standard equipment includes a filling connection for a flexible hose with an operating pressure of 232 to 330 bar. Among the optional extras available are: pressure maintaining valve, automatic condensate drain, and autostop, all to tailor the product to your specific needs.
Standard equipment:
- 1 cylinder connection, choice of DIN 232, DIN 300, INT/YOKE 232 bar
- 1 hose, 1.2 m long
- Hour meter (for single-phase electric motors only)
- Frame color Black RAL 9005
Technical specifications:
- Gas type Breathable air EN 12021 – Nitrox 40% max O2 – Helium – Nitrogen
- Suction pressure Atmospheric max 300 millibar
- Nominal pressure 230 bar / 330 bar
- Operating pressure 230 bar / 330 bar
- Max operating pressure 330 bar
- Permitted temperature range -10° C ÷ +40° C
- Permitted altitude range 0 ÷ 2,000 m SLM
- Maximum permissible inclination 6°
- Design Basic
- Operating voltage, standard 400 V, 50 Hz
- Other operating voltages on three-phase electric motors at 60 Hz power (kW / hp) increase by 20%. 230 V, 50 Hz / 230 V, 60 Hz / 440 V, 60 Hz
- Synthetic oil Coltri ST 755
- Oil change interval 1 year / 50 h
- Frame Steel – Color Black RAL 9005 – Powder coating – Scratch-resistant
